FULL DESCRIPTION of Item 189210

in Barrel Resist Strippers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 189210

Offered 1 Offered at Best Price

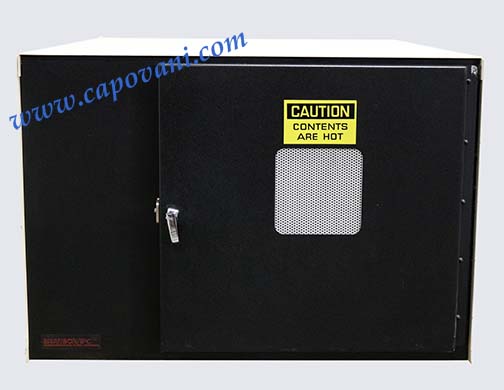

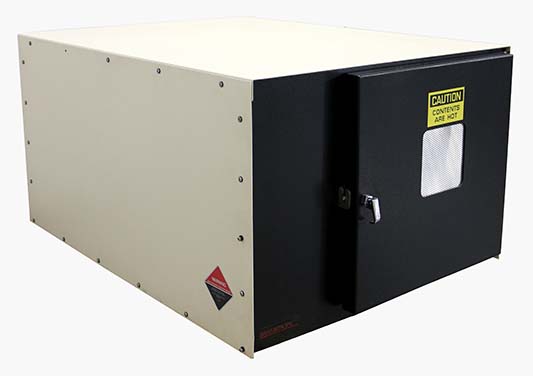

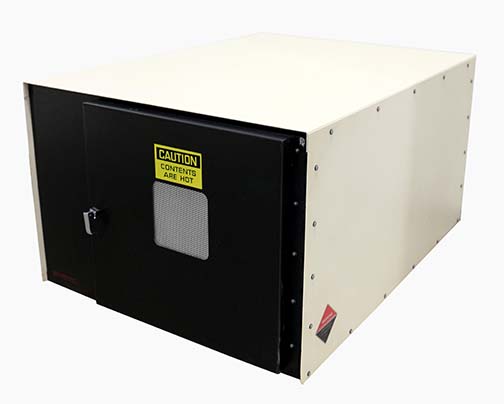

BRANSON PLASMA ASHER/ETCHER

Plasma Asher/Etcher

BRANSON PLASMA ASHER/ETCHER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Branson/IPC
Model 4155/2
Rated Power Output 1250 Watts
Chamber Construction Aluminum
Chamber Size
  Width 14.75  in  (37.47 cm)
  Depth 30.00  in  (76.20 cm)
  Height 14.75  in  (37.47 cm)
Number of Gas Inputs Two Gas
Automatching Network Included Yes
Vacuum Pump Included No
RF Generator Model OEM12
Panel Meters Analog
External Cooling Water Cooled
Accessories

Faraday Cage (installed)

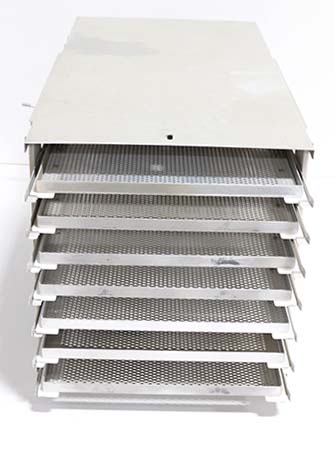

Seven shelf insert, 1.5" between shelves, see photos (option), inquire about price and availability

Other Information

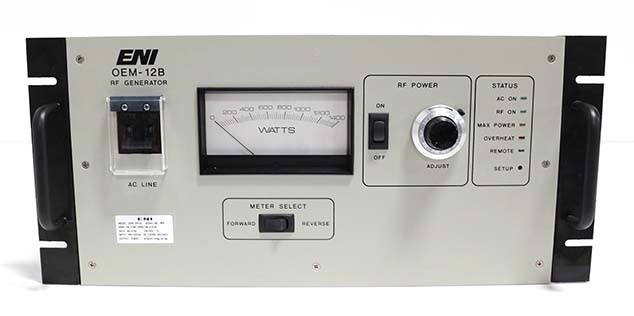

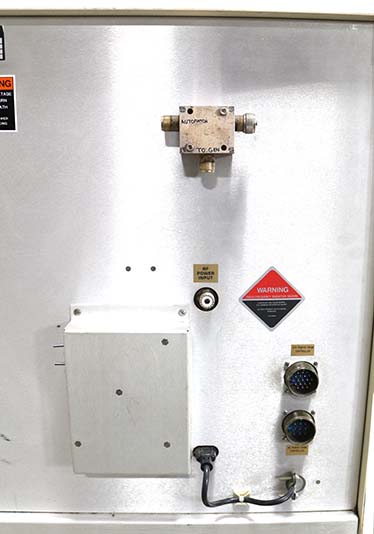

RF Generator:

  • Solid state, model OEM12
  • 200-240V 20.0A 50/60Hz 1 Phase

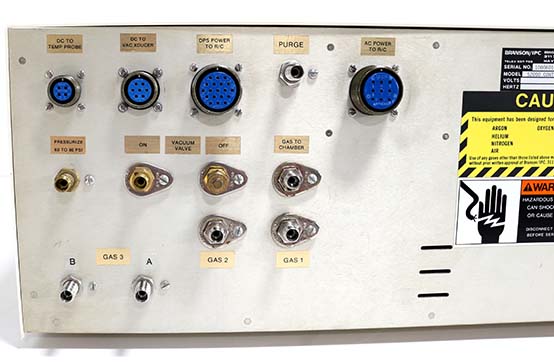

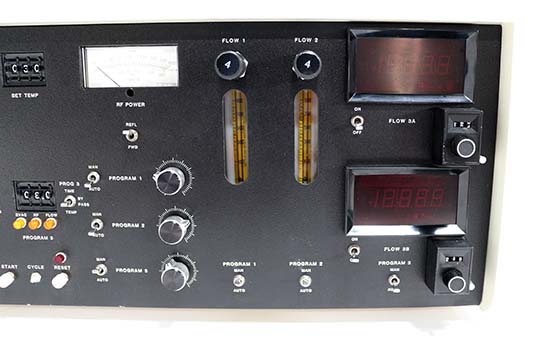

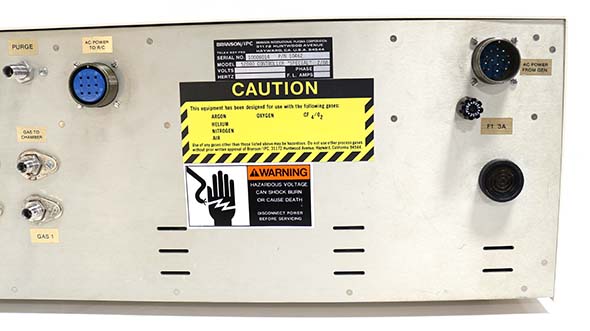

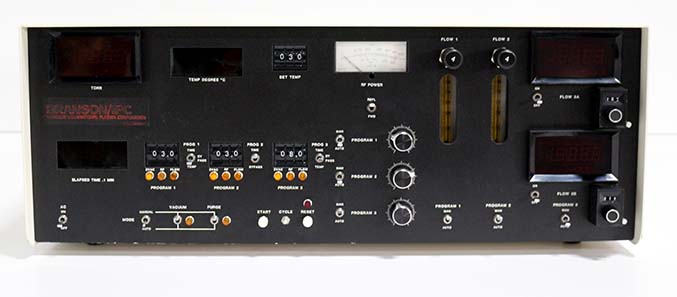

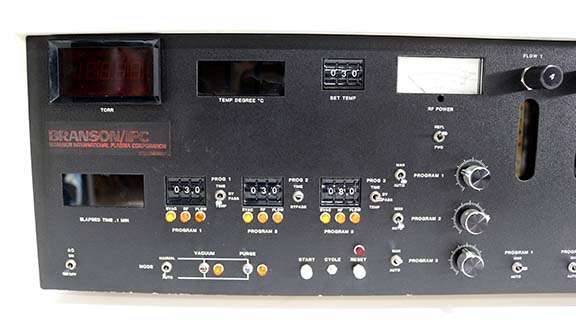

    Controller:
  • Model: S2000(Part No. 10462)
  • 120V 6.0 A 50/60 Hz 1 Phase
  • Has 6 gas ports
  • Dimensions: 25"W x 20"D x 9"H

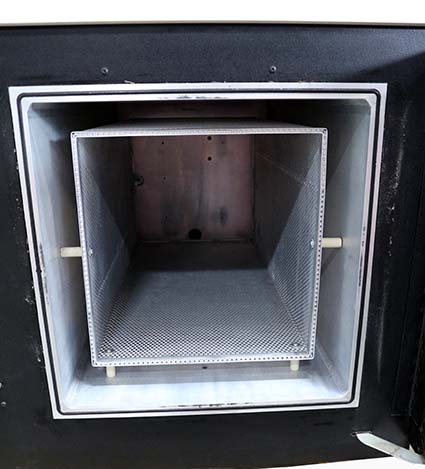

  • Etch tunnel dimensions: 11.5"W x 26"D x 11.5"H
  • MKS pressure transducer--Type 122A
  • Vacuum port flange KF 40
Power Requirements 200-240 V     20.0 A     1 Phase
Year of Manufacture 1988
Exterior Dimensions
  Width 32.000  in  (81.3 cm)
  Depth 43.000  in  (109.2 cm)
  Height 36.000  in  (91.4 cm)
Weight 440  lb  (200 kg)
