ALL CATEGORIES   Semiconductor Mfg   Wafer Fabrication Eq   Plasma Processing Eq   Plasma Resist Strip    View    Search-by-Specs    Input    Edit


in Barrel Resist Strippers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 59142

Offered 1 Offered at Best Price


Box Plasma Etcher

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Metroline
Model M4L
Rated Power Output 1000 Watts
Chamber Construction Aluminum/box
Chamber Size
  Width 13.00  in  (33.02 cm)
  Depth 17.00  in  (43.18 cm)
  Height 9.00  in  (22.86 cm)
Number of Gas Inputs Three Gas
Automatching Network Included Yes
Vacuum Pump Included Yes
RF Generator Model Seren

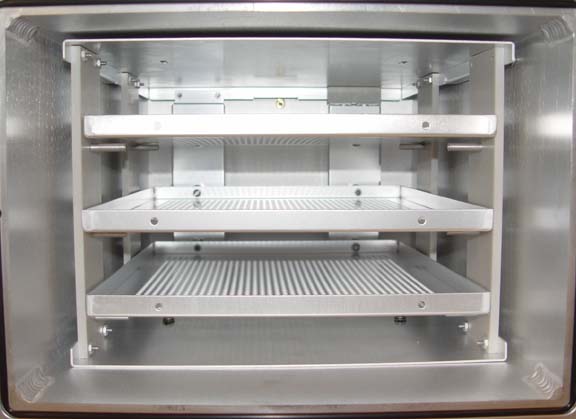

(3) Shelves Included
Leybold D25B Vacuum Pump

Other Information

Windows based software

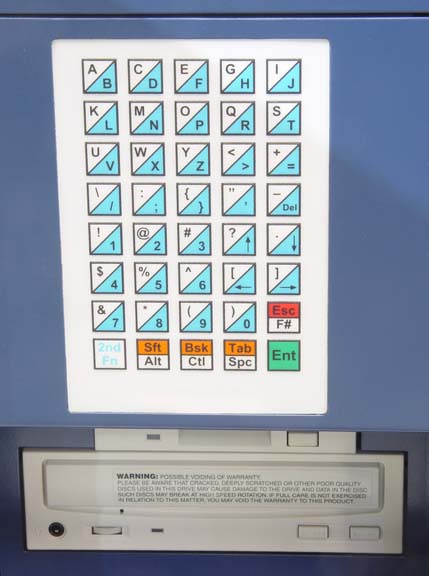

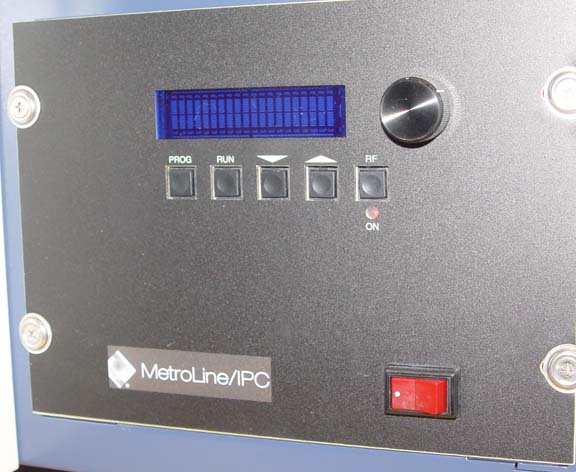

LCD touch panel,keyboard
Process under computer control
Built-in statistics and data gathering to disk
64 Process steps
Vacuum conection: KF 40
Gases: O2, AR, N2
MKS Throttle valve
Vacuum connection hose

Power Requirements 120 V     30.0 A     60 Hz     1¬†Phase
CE Marked YES
Exterior Dimensions
  Width 28.000  in  (71.1 cm)
  Depth 31.500  in  (80.0 cm)
  Height 30.000  in  (76.2 cm)
Weight 613  lb  (278 kg)
