Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Mitutoyo |

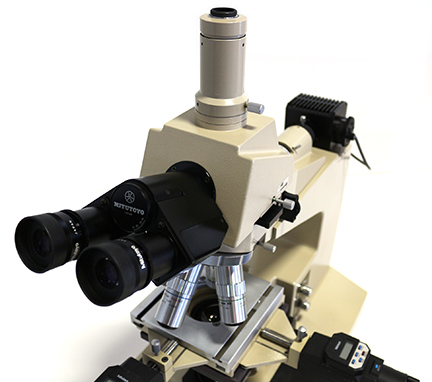

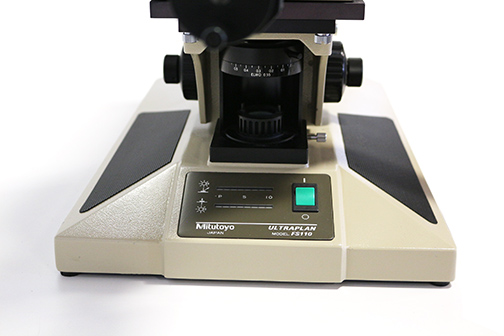

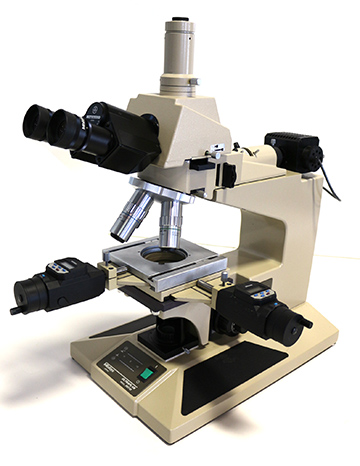

Model | FS-110T - 378-121 |
Microscope Configuration | Brightfield & Polarization |
Illumination Type | Reflected & Transmitted Light |
Binocular Angle | 45° |

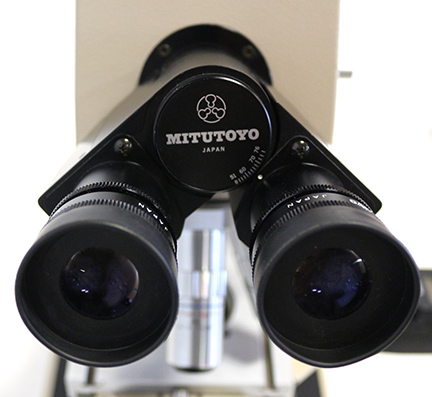

Eyepieces |  |
Model | UWF |
Magnification | 10 X |
Field Number | 30 mm |
Focusing | YES |

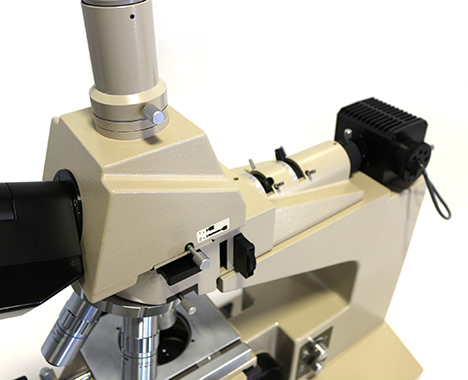

Trinocular/Phototube Provided | YES |
Magnification Changer | 1X, 2X |

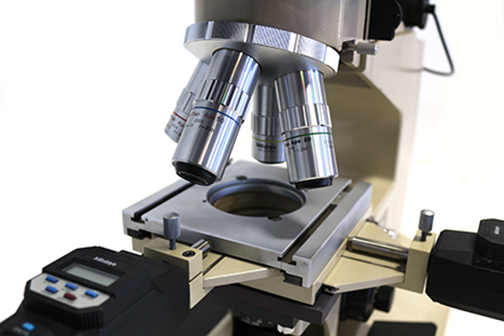

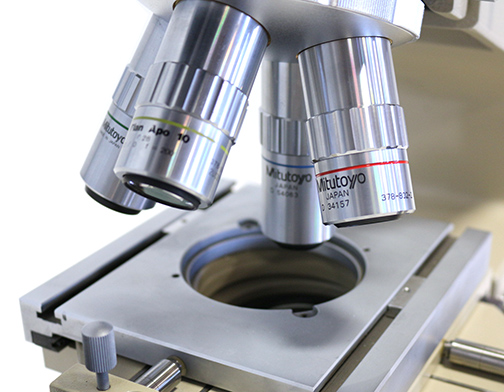

Multiple Objectives Models | M Plan APO 5X/0.14 - Part number 378-802-2 M Plan APO 10X/0.28 - Part number 378-803-2 M Plan APO 20X/0.42 - Part number 378-804-2 M Plan APO 50X/0.55 - Part number 378-805-2 |
Infinity Corrected Objectives | YES |
Polarizer | YES |
Analyzer | YES |
Stage Type | Coaxial X-Y |
Stage Area | Length: 70 mm (2.756 in)
Width: 70.0 mm (2.756 in)
|
Accessories | Optional accessories that are included: Polarizing unit - Part number 378-074 Differential interference contrast unit (DIC) for 50X, SL20X - Part number 378-078 CCD camera mount adapter - Part number 378-041

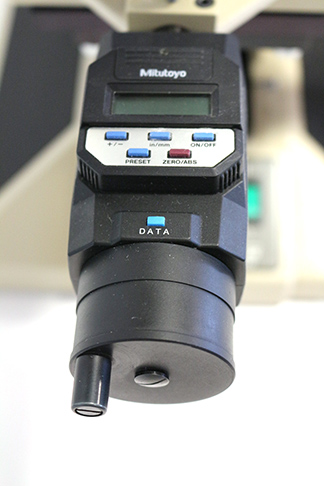

(2) Mitutoyo Digimatic Micrometer Heads Series 164 - Part number 164-162 Accuracy: ±.00015" Range - inches: 0-2", Resolution: .00005" Range - mm: 0-50.8mm, Resolution: 0.001mm |
Other Information | Polarizing light - reflected only.
Power requirements: 100 - 120V, 3A or 200, 240V, 1.5A 50/60 Hz, 80 VA, 1 Phase |
