Unit Price |
Unstated |
Number of Units |
1 |

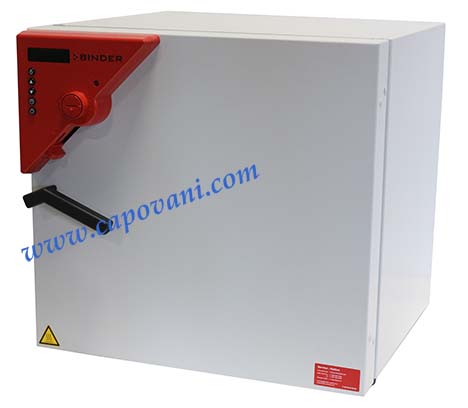

Manufacturer | Binder |
Model | ED 53 UL |
Maximum Temperature | 300 ºC (572 ºF, 573 ºK) |
Temperature Control |  |
Control Stability | ± 1.000 ºC |
Heat/Cool Controls |  |

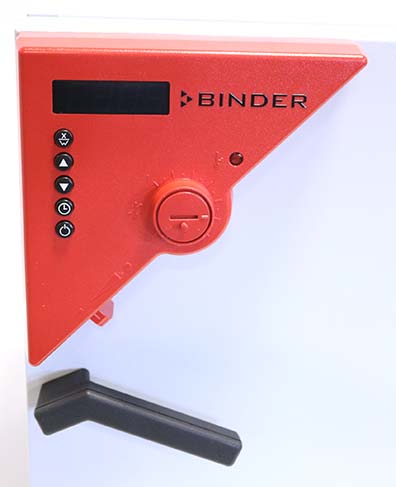

Control Type | Digital Setpoint |
Interface | Other |
Capacity/Volume Box | 1.90 cu ft (0.05 cu m) |
Chamber Size |  |
Width | 15.75 in (40.01 cm) |
Depth | 12.99 in (32.99 cm) |
Height | 15.75 in (40.01 cm) |

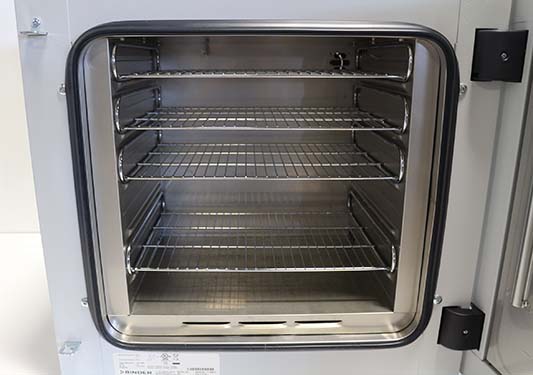

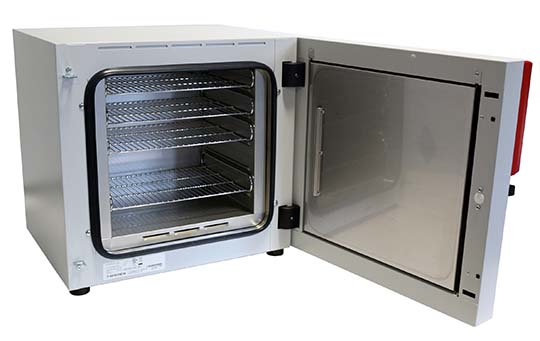

Chamber Characteristics |  |
Chamber Construction | Stainless Steel |
Maximum Number of Shelves | 5 |
Number of Shelves Provided | 2 |
Number and Size of Access Ports | None |
Number of Rack Positions | 5 |
External Cooling | Air Cooled |
Other Information | 25 Pin Interface |
Extended Description |
Details at Binder ED-53.pdf |
Power Requirements | 115 V
16.0 A
60 Hz
1 Phase
|
CE Marked | YES |

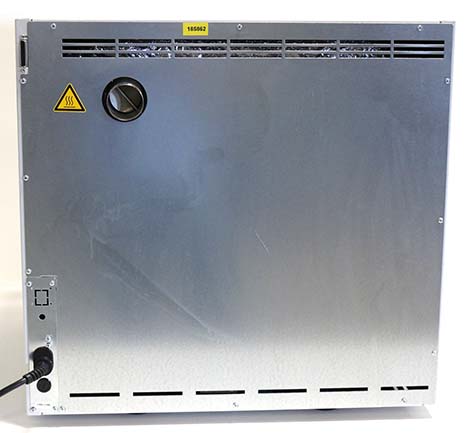

Exterior Dimensions |  |
Width | 25.000 in (63.5 cm) |
Depth | 22.640 in (57.5 cm) |
Height | 24.410 in (62.0 cm) |
Weight | 93 lb (42 kg) |
