FULL DESCRIPTION of Item 24631

in Linear Stages
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 24631

Offered 1 Offered at Best Price

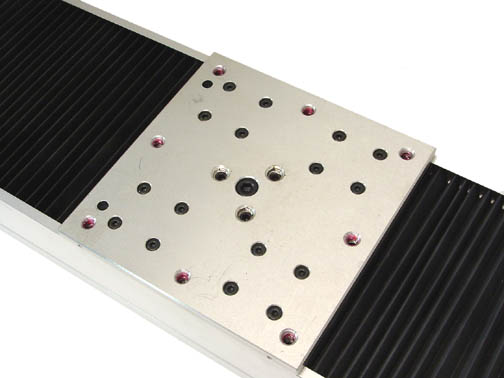

DAEDAL LINEAR STAGE, 16" TRAVEL

Linear Stage

DAEDAL LINEAR STAGE, 16" TRAVEL
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Daedal
Model 406016NEP
Configuration Single Axis
Total Travel, XYZ X: 16.00  in  (406 mm)
Mechanical Drive System Precision Ball screw
Stage Bearing Type Linear Bearing
Linear Accuracy  0.32 micron
Encoder Included YES
Stage Length 34.50  in  (876 mm)
Stage Width 6.00  in  (152 mm)
Table Length 6.00  in  (152.40 mm)
Table Width 6.00  in  (152.40 mm)
Tabletop Height 2.50  in  (63.50 mm)
Maximum Payload 600.00  lb  (272.16 kg)
Other Information

Optical encoder
Bellows covered
Limit switches
Motor
API Gettys: Model# MES-N3Y-00-301

Exterior Dimensions
  Width 6.000  in  (15.2 cm)
  Depth 34.500  in  (87.6 cm)
  Height 4.500  in  (11.4 cm)
Weight 25  lb  (11 kg)
