in Burn-In Ovens
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 40706

Offered 2 Offered at Best Price


Thermotron Burn-In Test System

  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Thermotron
Model S-1.2-H-PTS-TX
Maximum Temperature 177  ºC  (351 ºF, 450 ºK)
Minimum Temperature 21  ºC  (70 ºF, 294.00 ºK)
Heat/Cool Controls
  Control Type Programmable
  Interface IEEE 488-GPIB
  Controller Manufacturer/Model Thermotron 2800
  Number of Control Zones 1
Capacity/Volume Box 1.20  cu ft  (0.03 cu m)
Chamber Size
  Width 16.00  in  (40.64 cm)
  Depth 11.00  in  (27.94 cm)
  Height 12.00  in  (30.48 cm)
Chamber Characteristics
  Chamber Construction Stainless steel
External Cooling Forced Air Cooled
Other Information

System configuration

  • Temperature Chamber
  • Functional test system
    Test system model PTS-TX-BI
    Host computer: HP Pentium
  • IEEE-488 Parallel interface board
  • PTSWin Software package
  • Excel software
  • PC Anywhere software
  • 14" LCD Monitor
  • Key board PTS Unit: 6 analog Input
    Power supplies:
  • Hewlett Packard HP6209B: 0-320V/0-0.1A
  • International Power model HDD-15-5
    Saftey devices:
  • Three position limit switch on console door
  • Emergency power off button
  • Saftey interface with Temperature Chamber

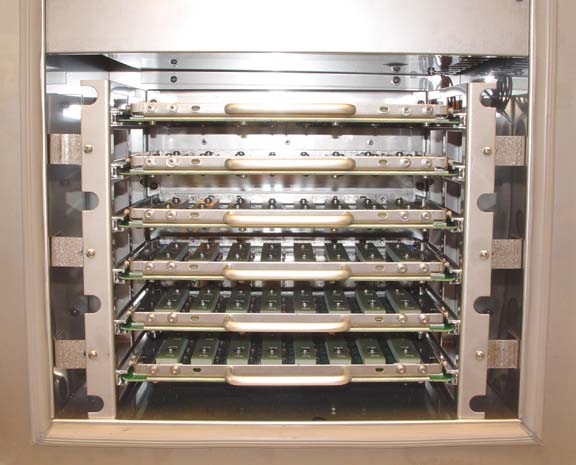

    Chamber Interior:
    Rack for 6 test boards
    Each board has two 28 position edge connectors
    Thermotron Transmitter Board P/N 4811568B (behind chamber)
    Thermotron P/N: 481131B Test fixture with 4.5" Edge connector with 28 contact pads. (inside chamber)
    Board dimension 11 5/8"W x 6 7/8"L
Power Requirements 115 V     7.0 A     60 Hz     1 Phase
Year of Manufacture 1998
Condition Very Good
Exterior Dimensions
  Width 32.500  in  (82.6 cm)
  Depth 37.500  in  (95.3 cm)
  Height 78.000  in  (198.1 cm)
Weight 886  lb  (402 kg)
