FULL DESCRIPTION of Item 50992

in Horizontal Diffusion Furnaces
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 50992

Offered 1 Offered at Best Price

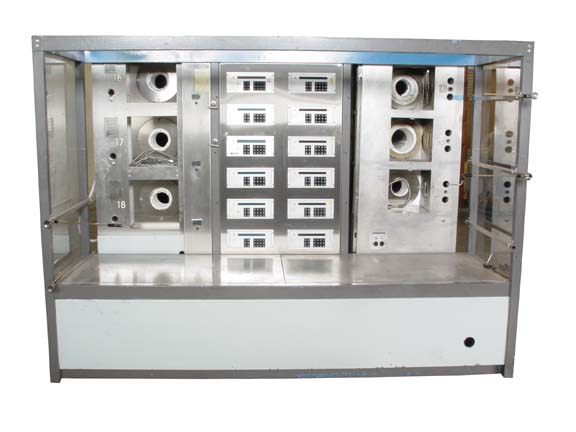

THERMCO/TEMPRESS TUBE FURNACE

Six Pack Tube Furnace consisting of one three stack 4" capable and one 6" capable three stack furnace

Two three stack Thermco furnace banks sharing one laminar flow, bulk head mount, manual pull station with Tempress Model 263 Controllers.

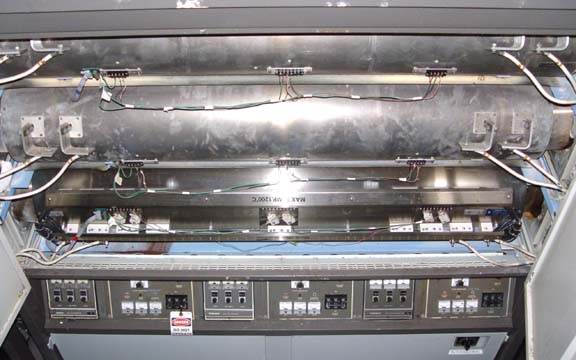

Left side bank was refurbished and upgraded(Canary Tech.) to 150mm capable MRL Black Max heating elements with one year of use.

Furnace will be sold AS IS WHERE IS

THERMCO/TEMPRESS TUBE FURNACE
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Canary Technology
Model CT 3533-130
Wafer Size Range
  Minimum 50 mm
  Maximum 150 mm
Furnace Tube #1:
Process Anneal
Gas System
  Gas Input Control Mass Flow Controllers
  Process Gases H2,N2
Furnace Tube #2:
Gas System
  Gas Input Control Mass Flow Controllers
  Process Gases H2,N2
Furnace Tube #3:
Process Anneal
Gas System
  Gas Input Control Mass Flow Controllers
  Process Gases H2,N2
Gas Cabinet YES

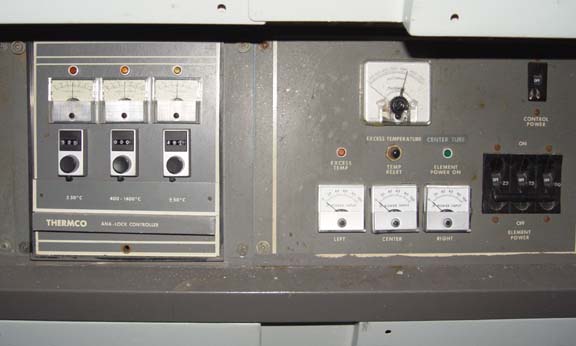

Controller Manufacturer/Model Tempress
Maximum Temperature 1,100  ºC  (2,012 ºF, 1,373 ºK)
Number of Control Zones 3
Overtemperature Protection YES
Other Information

4" bank has Tempress Model 2268 gas trays

Power Requirements 480 V     115.0 A     60 Hz     3 Phase
Year of Manufacture 1999
Condition Very Good
