FULL DESCRIPTION of Item 60591

in Rotary Vane Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 60591

Offered 31 Offered at Best Price

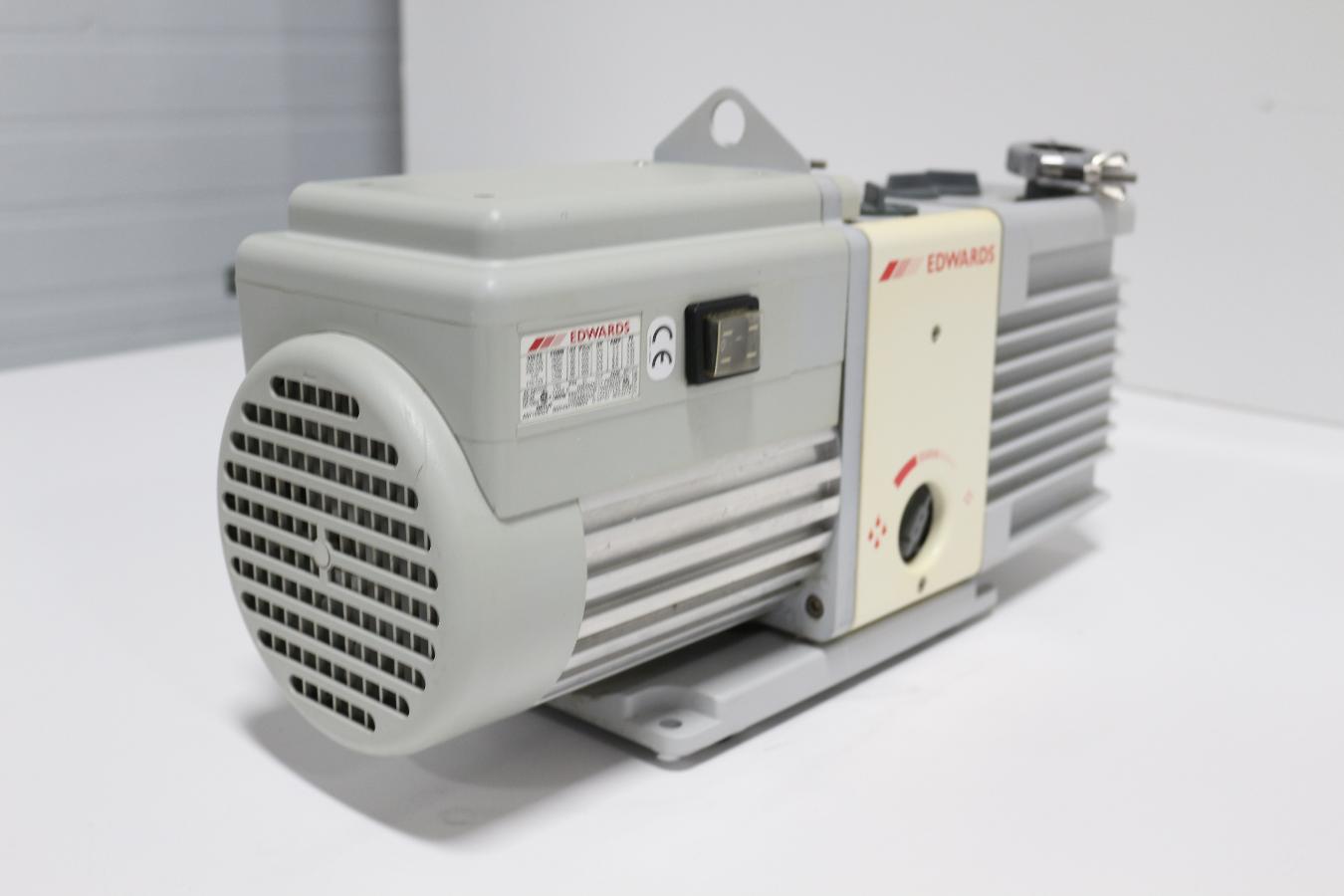

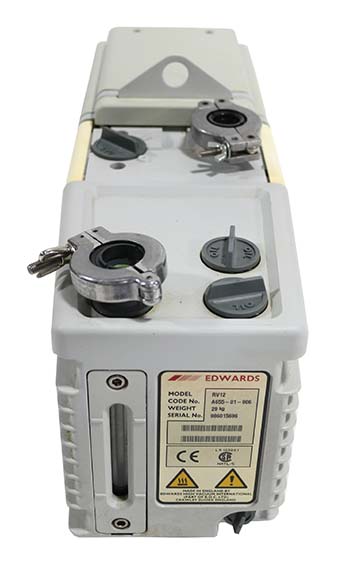

EDWARDS ROTARY VANE MECHANICAL VACUUM PUMP 10 CFM

Two Stage Mechanical Vacuum Pump



Pumping speed and ultimate pressure are based on 60 Hz operation.

Edwards RV12.



EDWARDS ROTARY VANE MECHANICAL VACUUM PUMP 10 CFM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 31
Manufacturer Edwards
Model RV 12
Pumping Speed 8.4  CFM  (237.4 l/m)
Ultimate Pressure  1.50E-3(En)  torr  (2.00E-3 mbar)
Inlet Flange KF     25.0  mm  (0.984 in)
Exhaust Flange KF     25.0  mm  (0.984 in)
Gas Ballast Yes
Direct Drive Yes
Other Information

Input voltage:
208V, 50 Hz, 3 phase
230V, 60 Hz, 3 phase
380V, 50 Hz, 3 phase
460V, 60 Hz, 3 phase

Extended Description  Details at rv 3,5,8,12 pumps A652_01_880.pdf
Exterior Dimensions
  Width 6.220  in  (15.8 cm)
  Depth 19.250  in  (48.9 cm)
  Height 10.280  in  (26.1 cm)
Weight 58  lb  (26 kg)
