FULL DESCRIPTION of Item 78914

in Single Sided Lapper
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 78914

Offered 1 Offered at Best Price

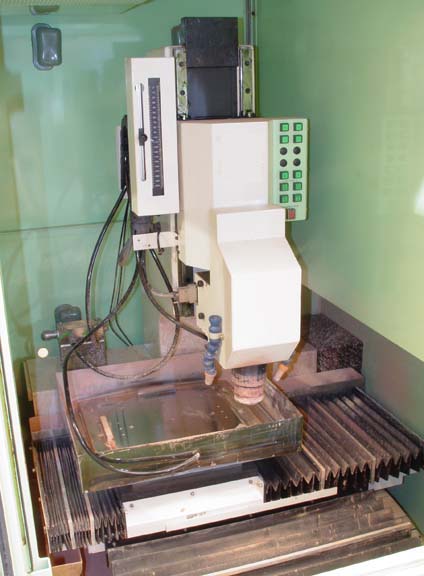

KURODA PRECISION INDUSTRIES SUPER POLISHING MACHINE

Super Polishing Machine

KURODA PRECISION INDUSTRIES SUPER POLISHING MACHINE
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Kuroda Precision Ind
Model KRP 2200F
Description Super Polishing Machine
Accessories

Slurry recovery system

Other Information

General Specifications:
Table diameter: 300mm
Max. workpiece size: 400mm dia x 200mm H
Table revolution speed: 0.5-6 rpm
Z Axis stroke: 100mm
X Axis Specifications:

  • Stroke: 400mm
  • Feed rate: 0.1-3m/min
  • Resolution: 0.001mm
    Y Axis Specifications:
  • Stroke: 400mm
  • Feed rate: 0.1-3m/min
  • Resolution: 0.001mm
    Polishing Head Specifications:
  • Vertical stroke: 50mm
  • Speed: 50-200 rpm
  • Polishing load: 0.5-5 kgf
    Control Specifications:

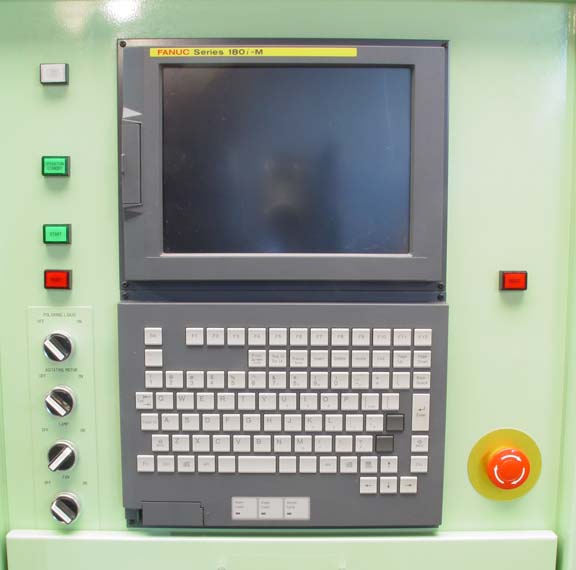

  • FANUC 180i-M
  • Two axes with NC, X and Y
Power Requirements 200-208 V     50/60 Hz     3 Phase
Year of Manufacture 2000
Exterior Dimensions
  Width 55.000  in  (139.7 cm)
  Depth 43.000  in  (109.2 cm)
  Height 70.000  in  (177.8 cm)
Weight 2,646  lb  (1,200 kg)
