FULL DESCRIPTION of Item 175315

in Sample Coaters
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 175315

Offered 1 Offered at Best Price

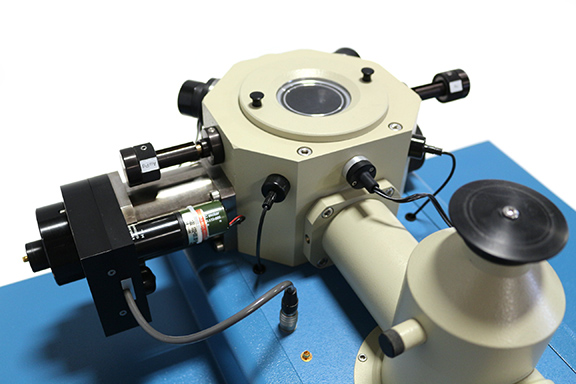

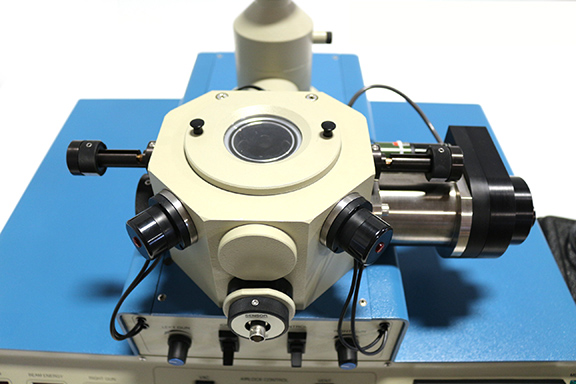

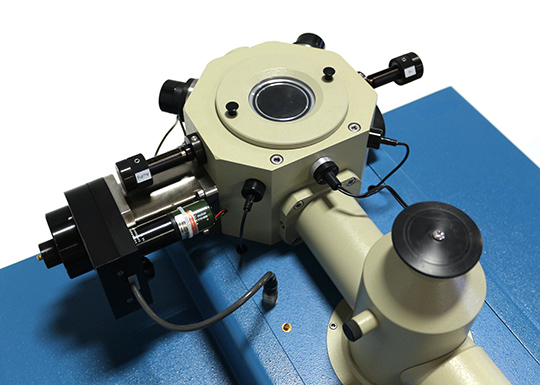

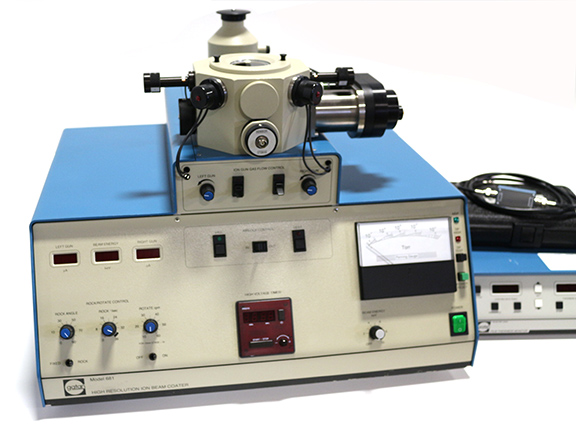

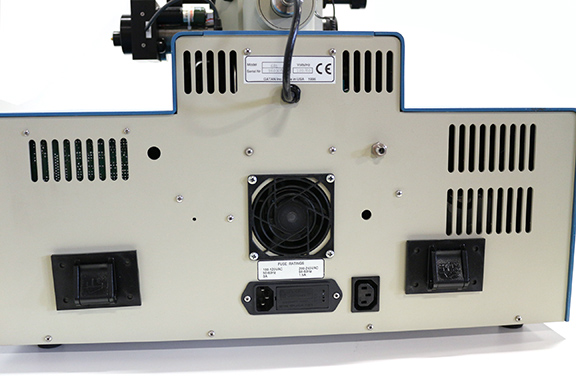

GATAN ION BEAM COATER (IBC)

Ion Beam Coater

Ion Beam Coater (IBC) designed to produce high-quality conductive coatings on

SEM or TEM specimens

GATAN ION BEAM COATER (IBC)
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Gatan
Model 681
Coating Method Sputtering Only
Gas Flow Control Manual
Vacuum Metering Yes
Current Metering Yes

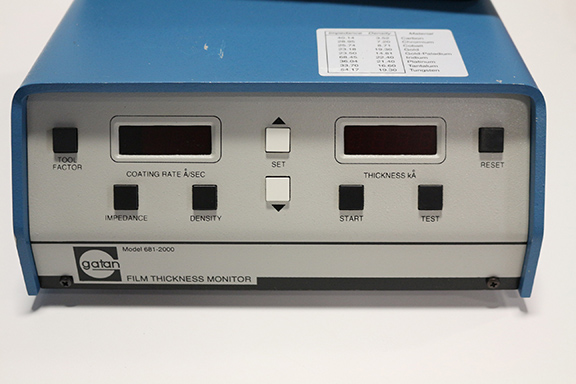

Thickness Monitoring
  Model Gatan 681-2000FTM
Mechanical Vacuum Pump Included Yes
Model MVP015

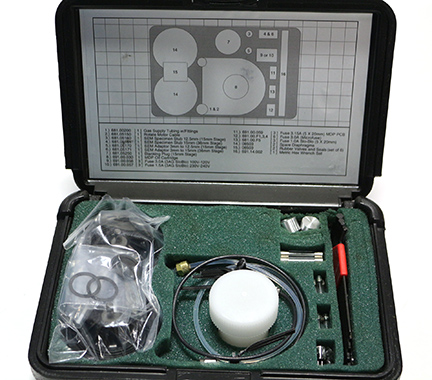

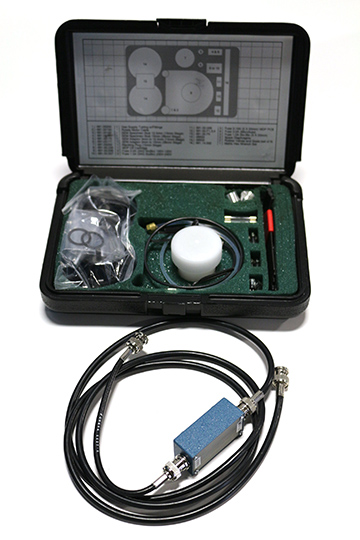

Accessories



  • LN2 trap
  • Gatan thickness monitor
Other Information



  • Dual ion sources
  • Includes 4 targets:
    1. gold
    2. gold/palladium
    3. carbon
    4. chromium
  • Compact dry vacuum system consisting of the diaphragm and molecular drag pumps.
  • Penning gauge vacuum monitoring
  • The Whisperlok stage, a modified version of Gatan’s patented Whisperlok™ mechanism, enables the specimen not only to rotate but to rock through a variable angle set by a front-panel control.
  • The Whisperlok accepts a single specimen up to 36 mm in diameter or multiples of smaller-diameter holders.This stage permits specimen exchange in less than 30 seconds

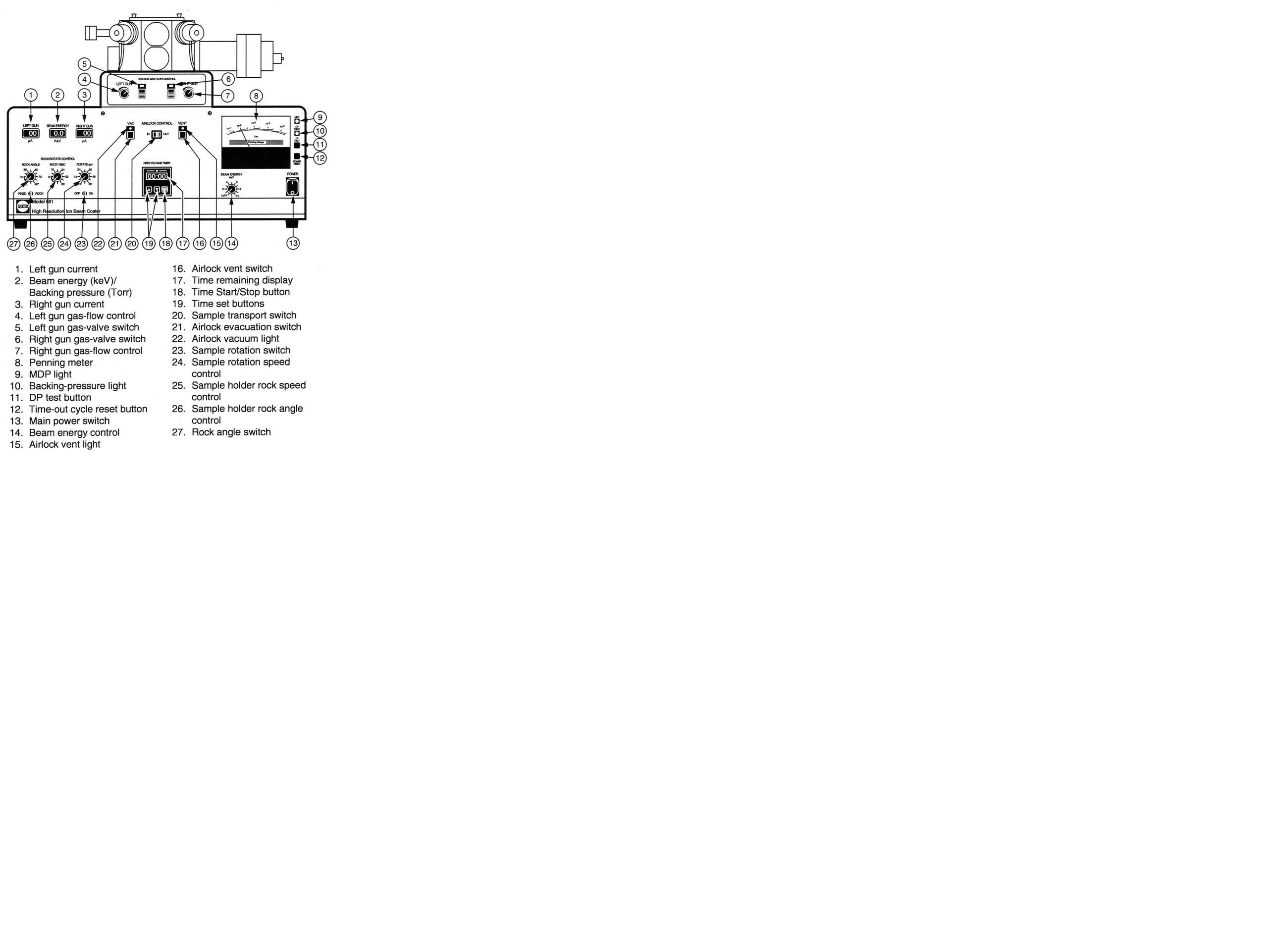

Extended Description  Details at 681 Ion Beam Coater Front Panel.jpg
Power Requirements 120/240 V     3.0 A     1.5 A(2)     50/60 Hz     1 Phase
CE Marked YES
Condition Excellent
